| 產地 |
CHINA
|
是否進口 |
否
|
訂貨號 |
ICAR2 Bluetooth
|
| 加工定制 |
否
|
貨號 |
ICAR2 Bluetooth
|
類型 |
汽車故障診斷儀
|
| 電壓 |
9-15（V）
|
工作溫度 |
0~50（℃）
|
品牌 |
Vgate
|
| 型號 |
ICAR2 BT
|
適用車型 |
OBD2
|
主要下游平臺 |
wish,亞馬遜,獨立站,速賣通,LAZADA,e
|

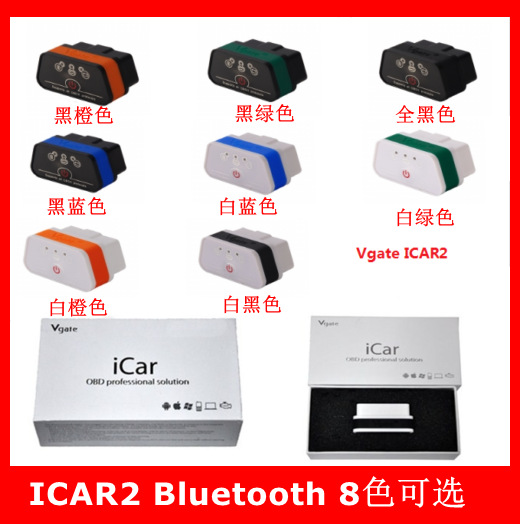

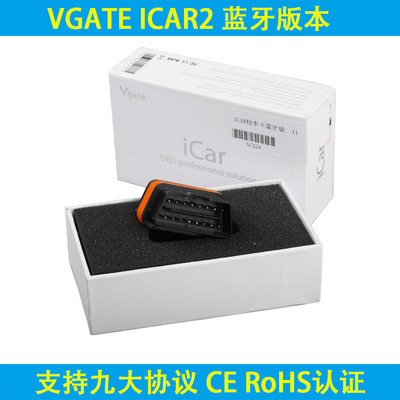

Vgate iCar2 Bluetooth Version OBD2 Code Reader iCar2 supports OBDII protocols, this version support Android, and Windows.
Bluetooth Version: 3.0
Software version: V2.1
Hardware version: V2.1
Top 7 Reasons to Get iCar 2 Bluetooth version:
1. Small size, compact structure. Plug and never unplug
2. Stable connection
3. When stop communication, wait half an hour, auto sleep
4. Supports all OBDII protocols
5. The adapter uses the fastest and most reliable ARM chips
6. Bluetooth 5 ~ 10 meter
7. iCar (Bluetooth version) support for software applications for Palm, PDA, Mobile (Androis, java, blackmerry, etc)
Vgate iCar2 Bluetooth OBD2 Scanner Functions:
1. Read, erase and display code descriptions problems - both standard and spetskodov manufacturers.
2. Measure the fuel consumption.

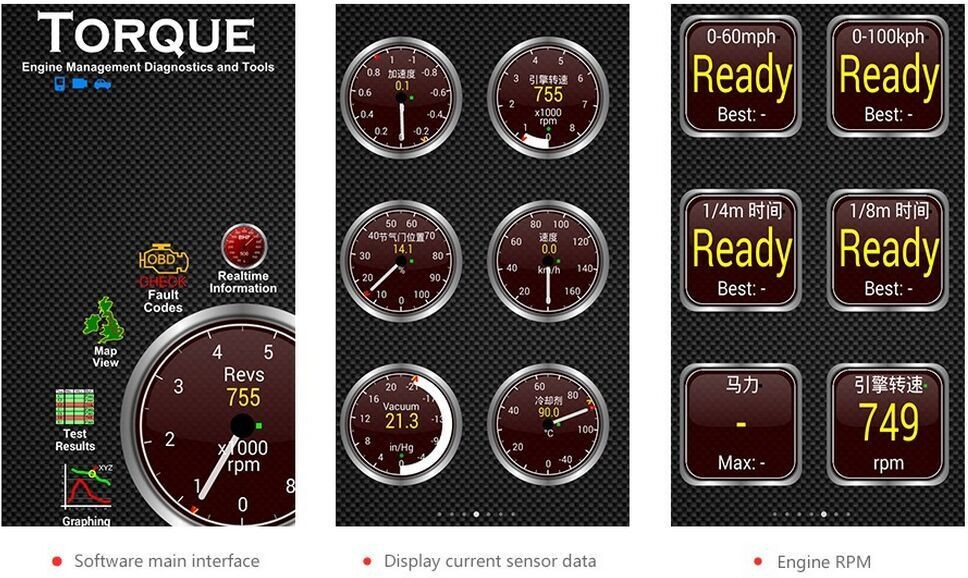

3. Display real-time operating performance of the car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values oxygen sensors, air intake temperature, and more.
4. Turn off the MIL (signal Check Engine).
5. Download data to external media in a variety of formats for later printing.

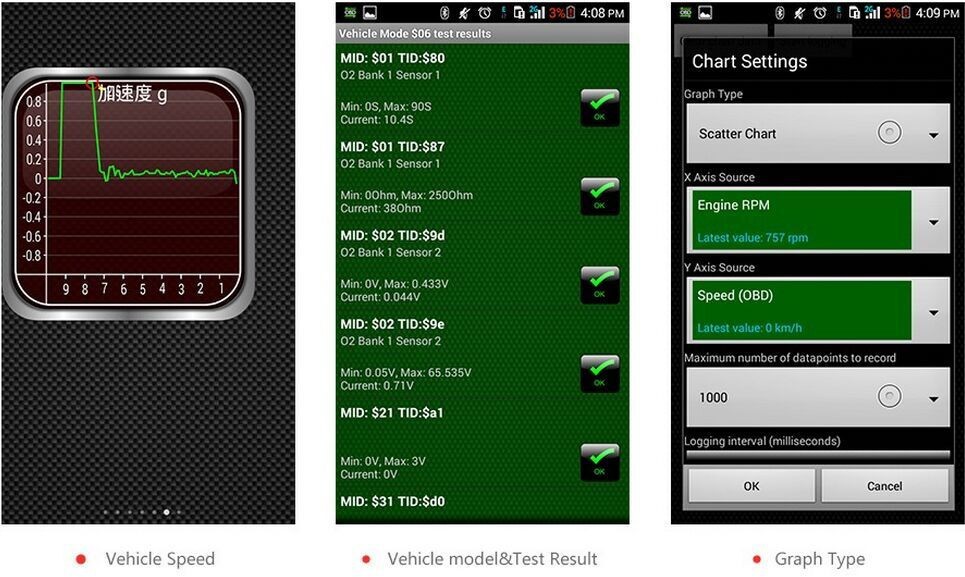

6. Record various parameters, display graphics in real time, and more.
Spports all OBD-II protocols:
0.Automatic
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)
A.SAE J1939 CAN (29bit ID, 250 * Kbaud)
B.USER1 CAN (11 * bit ID, 125 * Kbaud)
C.USER2 CAN (11 * bit ID, 50 * kbaud)

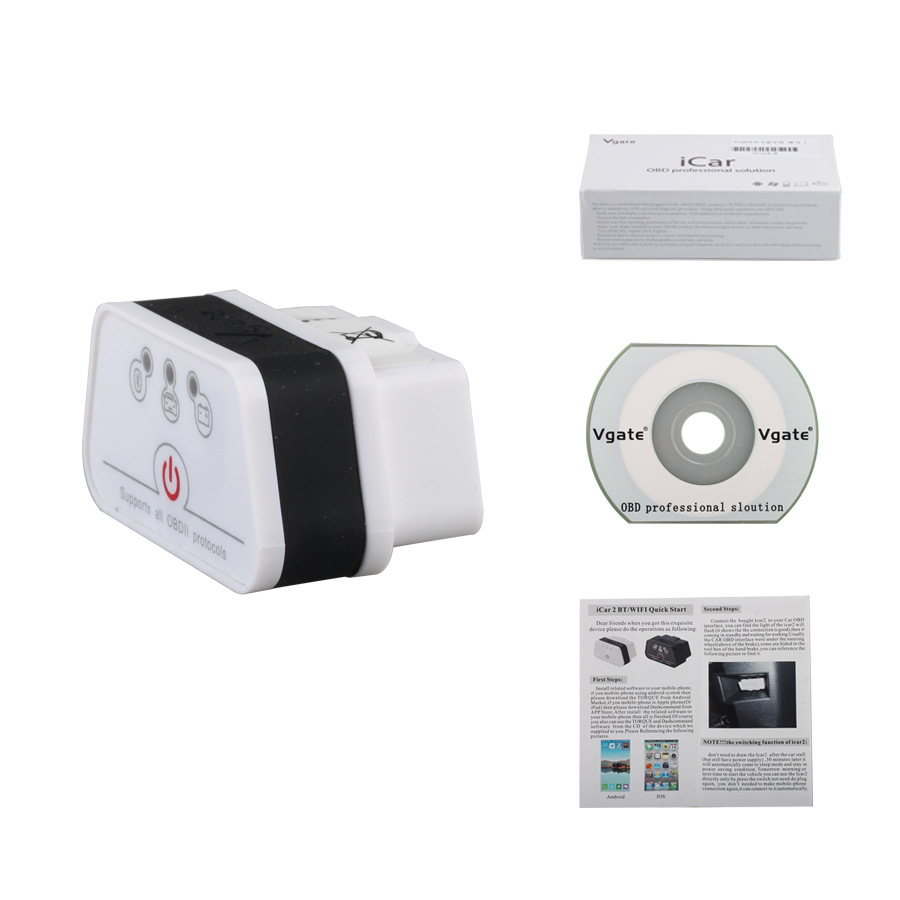

Package List:
1pc x Vgate iCar 2 (Bluetooth Version)
1pc x User's Manual
1pc x Color box
